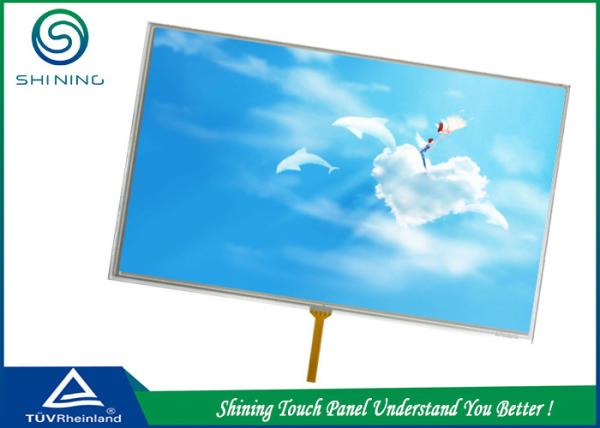

LCD Module Car Touch Panel Resistive 4 Wire For Vehicle GPS
Navigation
In-vehicle GPS Navigation:
More and more in-vehicle devices are with touch funciton, such as
built-in GPS navigation together with DVD player and radio,
muilt-rearview mirror camera etc. And the performance is better and
better with the devopment of touch technology. Still, a lot of such
device takes the analog resistive techonolgy. The sizes are usually
from 6 inches to 10.1 inches.
4 wire resistive touch is typically glass bottom and film top, but
they can be film + Film. It consists of a conductive bottom layer
of either glass or film and a conductive top film layer, separated
by extremely small, transparent spacer dots. A voltage is applied
across the conductive surface. When pressure from a touch is
applied to the top layer, it is compressed and makes contact with
the bottom layer resulting in a voltage drop. This change is
detected by the controller. By alternating the voltage signal
between the top layer and the bottom layer, the X and Y coordinates
of the user’s touch are computed. Each layer serves as one of the
axes.
Specifications:
| Structure | F + G |
| Wiring Method | FPC |
| OD | 235.00*145.80mm |
| VA | 225.20*135.70mm |
| AA | 223.20*133.70mm |
| Transmittance | >78% |
| Touch Life Span | >3,000,000 times |
| Scoring Life Expectance | >1,000,000 times |
| Linearity | <3.0% |
| Supply Voltage | 3.3V DV, 5V DC |
| Chattering Time | <10 MS |
| Operating Temperature | -20℃-70℃, <90%RH |
| Storage Temperature | -30℃-85℃,<90%RH |
| Operating Force | 50-120g |
| Insulation Resistance | >20ΜΩ, 25V(DC) |
| Circuit Resistance | X(PIN1-PIN3): 400-1100Ω Y(PIN2-PIN4):100-500Ω |
